45 Watt Aero Alloy Solar Panel Motor Home & Boat Kit

The 45wp kit is ideal for use on small motor homes where power consumption is mainly limited to running the interior lights and water pump and / or use is during the summer months.

• Aero Alloy profile Fixings for mounting the panel to the roof
• High efficiency crystalline cell for “all weather” charging
• Perfect for TV operation, 240v appliances* and for permanent fitting
• Water resistant, robust construction for outdoor use.
• 20 year cell warranty and 10 year module warranty**

**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years

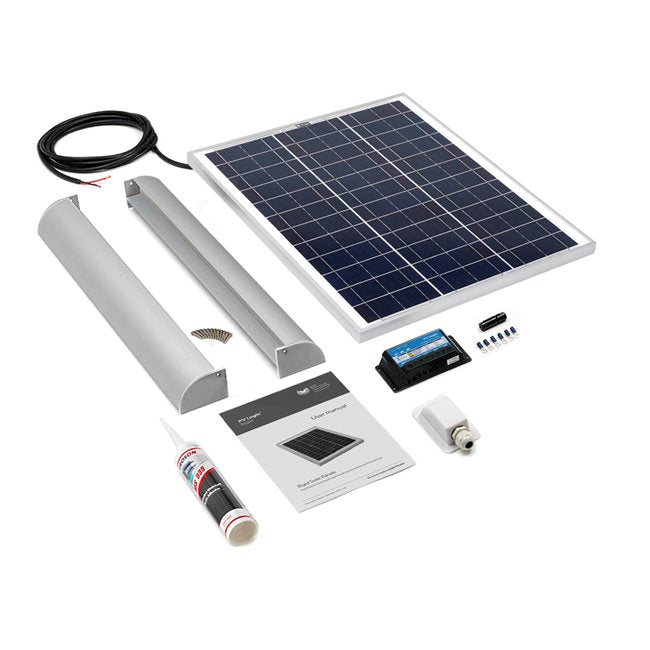

The kit comprises:

• 1 x STP045 – 45wp solar panel
• 1 x STCC10 – 10Ah charge controller
• 1 x 4m Cable Bundle
• 1 x FKA08 – Universal Fitting Kit (or selected fitting kit)
• 1 x STMP006 – Cable Feed Gland
• 1 x Tube Bonding Agent
• 1 x Pack fuses, ring terminals etc
• 1 x Fitting Instructions

Panel Information:

• Power (Wp) 45watts
• Nominal Voltage (Vmp) 17.5V DC
• Nominal Current (Imp) 2.58A
• Open Circuit Voltage (Voc) 22.0V
• Short Circuit Current (Isc) 2.86A
• Operating Temperature -40 to + 85 Deg C
• Max System Voltage 1000V DC
• Dimensions 634x535x25mm
• Weight 4.1Kg
• Approx. watt-hours/day** 270W
• Approx. amp-hours/day** 15.4A

** Based on 6 hours of average daily peak sunlight hours
