80 Watt Caravan & Motorhome Solar Panel Roof Top Kit

£280.00 £269.95 SAVE £10.05
SKU: STPMH80
Barcode:
Availability: In Stock Pre order Out of stock

This 80w PV Logic solar panel caravan and motorhome roof top kit enbablig the solar panel to be fitted to the roof of a caravan, campervan or motorhome. Delivering up to 480wh per day, the PV Logic 80w solar panel benefits from a 10 year product warranty and can fully charge an 85Ah battery on a sunny summer's day in the UK.

Full Details

This 80w PV Logic solar panel caravan and motorhome roof top kit enbablig the solar panel to be fitted to the roof of a caravan, campervan or motorhome. Delivering up to 480wh per day, the PV Logic 80w solar panel benefits from a 10 year product warranty and can fully charge an 85Ah battery on a sunny summer's day in the UK.

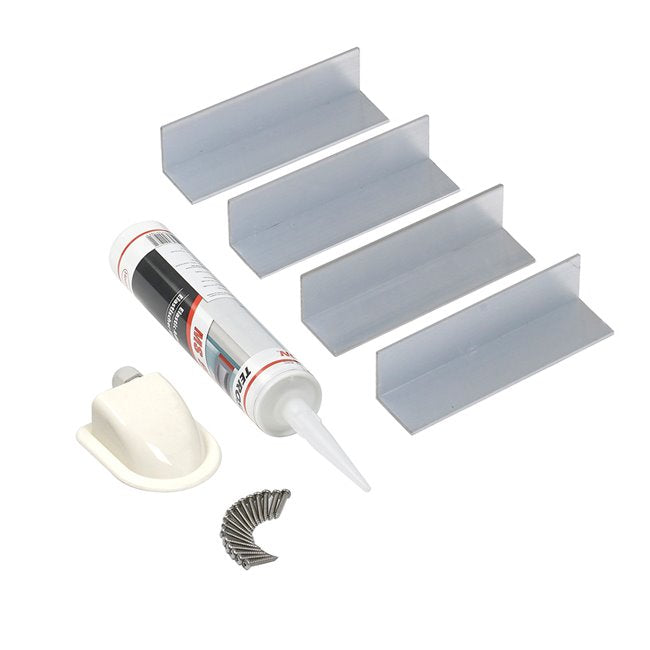

Perfect for off grid caravans and motorhomes this kit is a good choice where a smaller amount of power is needed during the dark days of winter. This roof and deck top kit is supplied with a 80w PV Logic solar panel, our premium aero brackets, 10Ah dual battery charge controller, 4m cable, connectors, fuse, bonding agent, cable feed gland and detailed installation instructions.



Features:

  • High efficiency crystalline cell for all weather charging
  • In built diode protects against battery discharge
  • Water resistant, robust construction for outdoor use.
  • 20 year cell performance warranty**
  • 10 year module warranty

**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values, i.e the cell degradation rate will be no greater than 20% in 20 years



Specifications:

  • Size: 885 x 670 x 35mm
  • Weight: 7.8kg
  • Watts per Day: 480 Watts*
  • Amp Hours per Day: 27.9Ah*

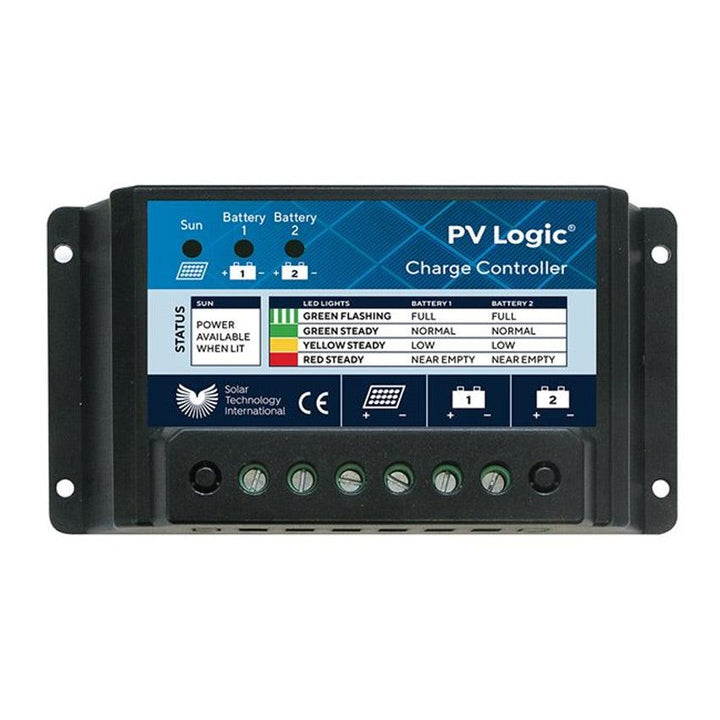

  • Charge Controller: 10Ah
  • Nominal Voltage: 17.5v DC
  • Nominal Current: 4.65A
  • Short-Circuit Current: 5A

*Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

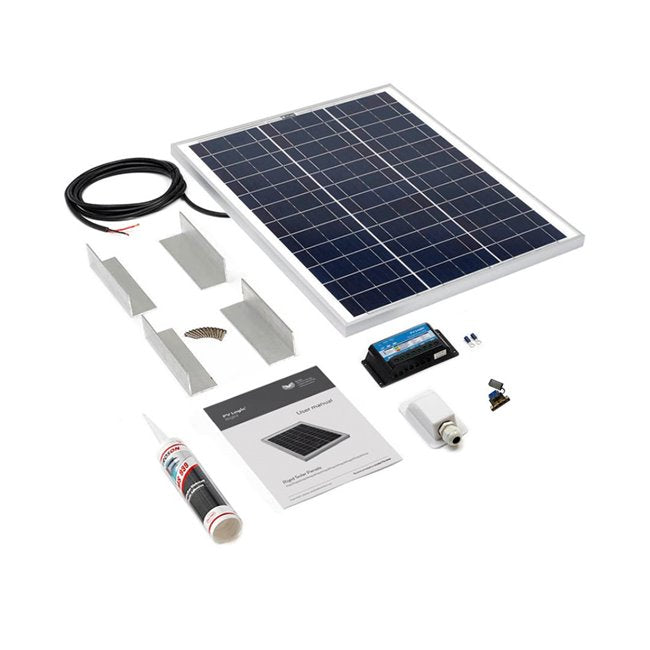

Solar Panel Kit Contents

1 x 80w solar panel / 1 x 4m cable / 1 x fuses, ring terminals etc / 1 X Aero fitting kit / 1 x cable feed gland / 1 x tube bonding agent / 10ah charge controller / 1 x fitting instructions / 10 year product
