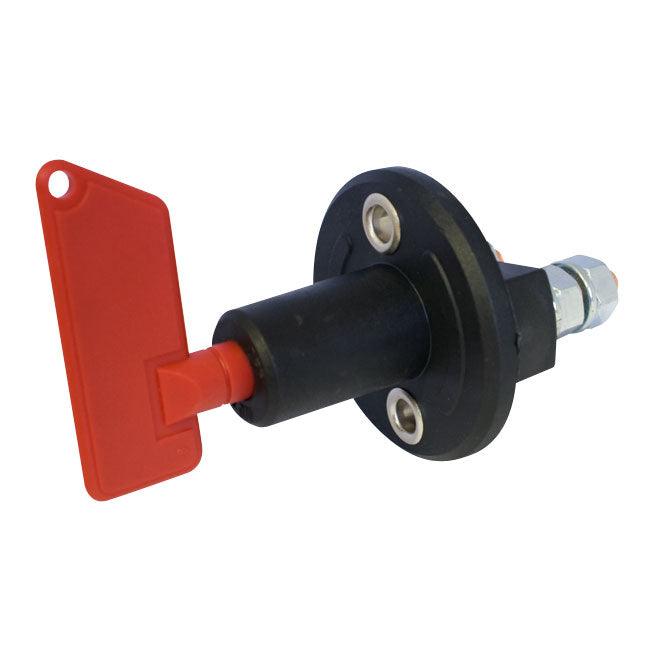

Maypole Caravan Battery Isolator Cut Off Switch 12/24V
- Compact battery isolator to quickly cut off 12 volt & 24 volt power
- Rated to IP4X water ingress protection
- Suitable for a continuous current up to 100A & surge up to 500A (5 Seconds)
- Single pole for connecting to the positive side of the circuit
- Flange mounting
Full Details
A Standard compact manual battery disconnect switch that features a removable handle with a plastic body. The removable key shuts the power off completely, and being removable prevents the systems from being turned on by anyone not authorised to do so.
- Rated to 100A continuous current this switch is ideal for light duty applications
- 100 amp continuous rate
- Removable key for safety and security
- Suitable for use with towing and touring auxiliary batteries
- Operating Voltage: 12V-24V DC
- Terminals: M8 zinc plated steel
- Ingress Protection: IP4X
- Max Continuous Current: 100A
- Intermittent Current: 500A (5 sec)
- Circuitry: SPST
- Mounting: Flange mount
- Contacts: Copper
- Operating Temperature: -40Ö¯c to +85Ö¯c
