PV Logic 150W Rigid MHD Solar Panel Roof Kit

£360.00 £339.95 SAVE £20.05
SKU: STPU150
Barcode:
Availability: In Stock Pre order Out of stock

The 150wp kit is ideal for use on large sized motor homes where the power is used to run the lights, water pump, television, lap top computer etc throughout the year or for extended touring periods.

Full Details

Made using innovative solar cell technology designed to deliver superior efficiency, the new 150wp Rigid Mono High Density (MHD) solar panel offers greater output in a smaller footprint. With the potential of delivering 900w of power per day, the 150w MHD panel gives you the freedom to spend time away from electrical hook up whilst keeping your favourite appliances and devices working. The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. MHD panels are perfect for use on a motorhome, caravan or campervan roof as well as other off grid power applications. They are supplied with a 10-year module warranty. A charge controller is included with this panel to protect the battery from being overcharged and to prevent reverse of current drain.

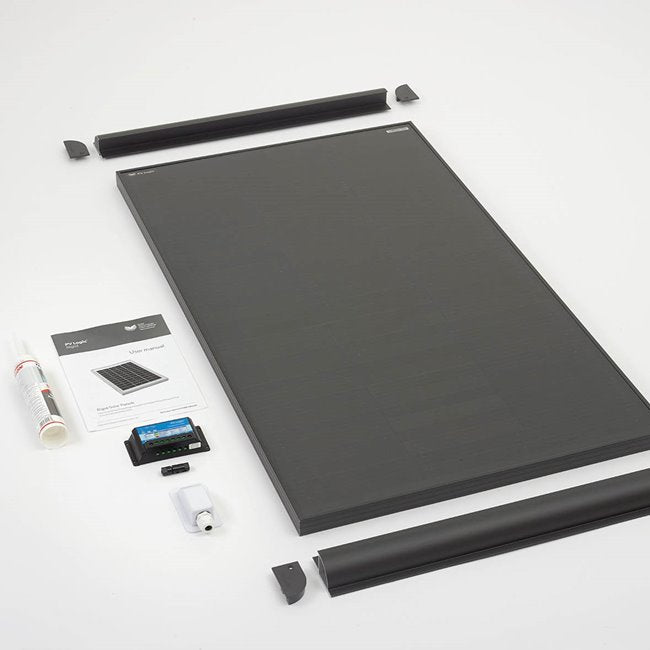

Roof and Deck Top Contents
1 x 150w MHD solar panel with 4m cable
1 x 10Ah charge controller
1 x premium aero bracket fitting kit
1 x cable feed gland
1 x tube bonding agent
1 x fitting instructions

Technical Specification

 Size 1150x670x30mm

Weight (Kg) 6.9

*Typical watts/day (W) 900

*Typical amps/day (A) 47.88

Charge controller 10Ah

Vmp (VDC) nominal voltage 18.8V

Imp (A) nominal current 7.98A

Voc (V) 22.2V

Isc (A) short circuit current 8.46A

*Watts and Amp hours/day based on six hours of average daily peak sunshine hours.

Warranty

10 year panel build warranty
