Full Details
The Vision Plus VP2 Digital Amplifier is fully wideband for television transmissions and is designed to be used with Vision Plus STATUS antennas with orange logos that do not have pullout telescopics.
The VP2 can also be used with the following range of antennas that only provide a TV output: IMAGE 410, IMAGE 420 IMAGE 440, IMAGE 610 and IMAGE 620.
This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in those areas that suffer with poor reception.
Specification:
- On/Off switch
- Variable gain control
- 2 TV outputs
- Frequency Range UHF 470-862 MHz
- Amplifier Gain Max 17dB
- Gain Adjustment 0 to ≃ 15 dB
- Noise Figure 2.2dB
- Output Impedance 75ohms
- Signal Handling 80 dBμV
- Power Supply 10.8-28v DC
- Power Consumption 55 mA
- Dimensions 115wx46hx28d (mm)

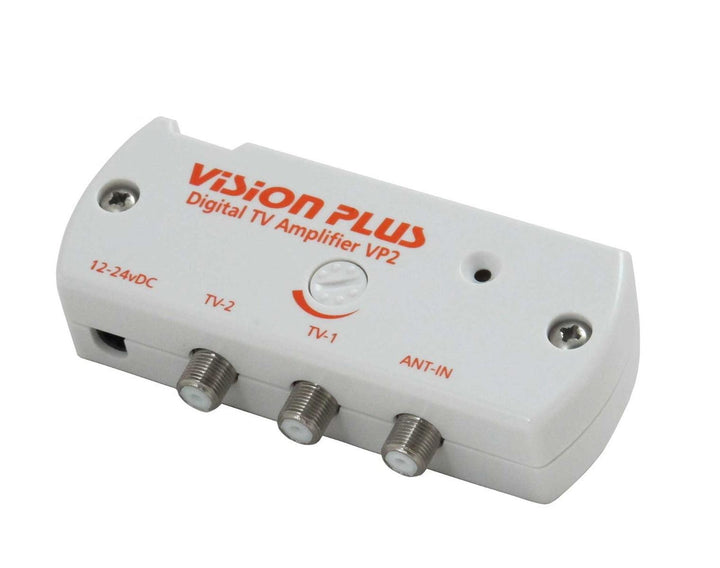

Vision Plus Digital TV Amplifier - VP2
