Vision Plus Digital TV Amplifier - VP4

Vision Plus Digital TV Amplifier - VP4

£33.95 £30.56 SAVE £3.39
SKU: T6005
Barcode: 5029833960539
Availability: In Stock Pre order Out of stock

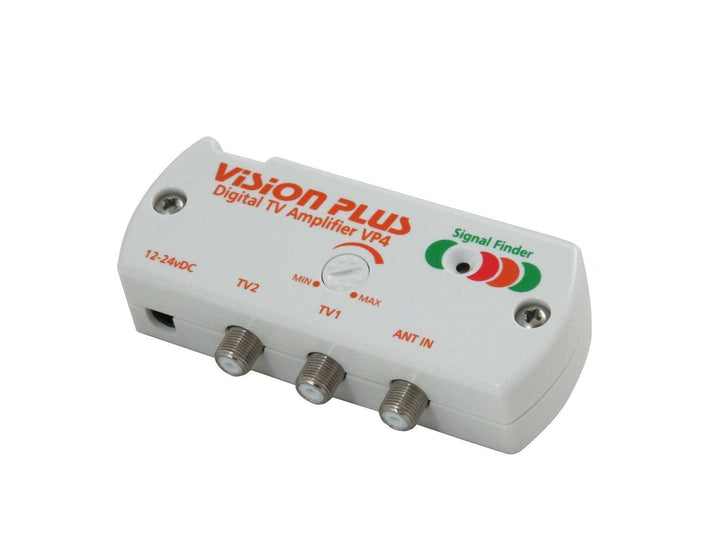

The Vision Plus VP4 Digital Amplifier with signal finder is fully wideband for television transmissions and is designed to be used with Vision Plus STATUS antennas with orange logos that do not have pullout telescopics.

Full Details

The Vision Plus VP4 Digital Amplifier with signal finder is fully wideband for television transmissions and is designed to be used with Vision Plus STATUS antennas with orange logos that do not have pullout telescopics.

It can also be used with the following range of antennas that only provide a TV output: IMAGE 410, IMAGE 420 IMAGE 440, IMAGE 610 and IMAGE 620.

This unique product also incorporates a dedicated Signal Finder to locate your nearest / strongest TV signal transmitters.

This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in those areas that suffer with poor reception.

Specification:

  • On/Off switch
  • Variable gain control
  • 2 TV outputs

  • Frequency Range UHF 470-862 MHz
  • Amplifier Gain Max 15dB
  • Gain Adjustment 0 to ≃ 15 dB
  • Flatness +1.5dB
  • Noise Figure 2.2dB
  • Output Impedance 75ohms
  • Signal Handling 80 dBμV
  • Power Supply 10.8-28v DC
  • Power Consumption 85 mA
  • Dimensions 115wx46hx28d (mm)
